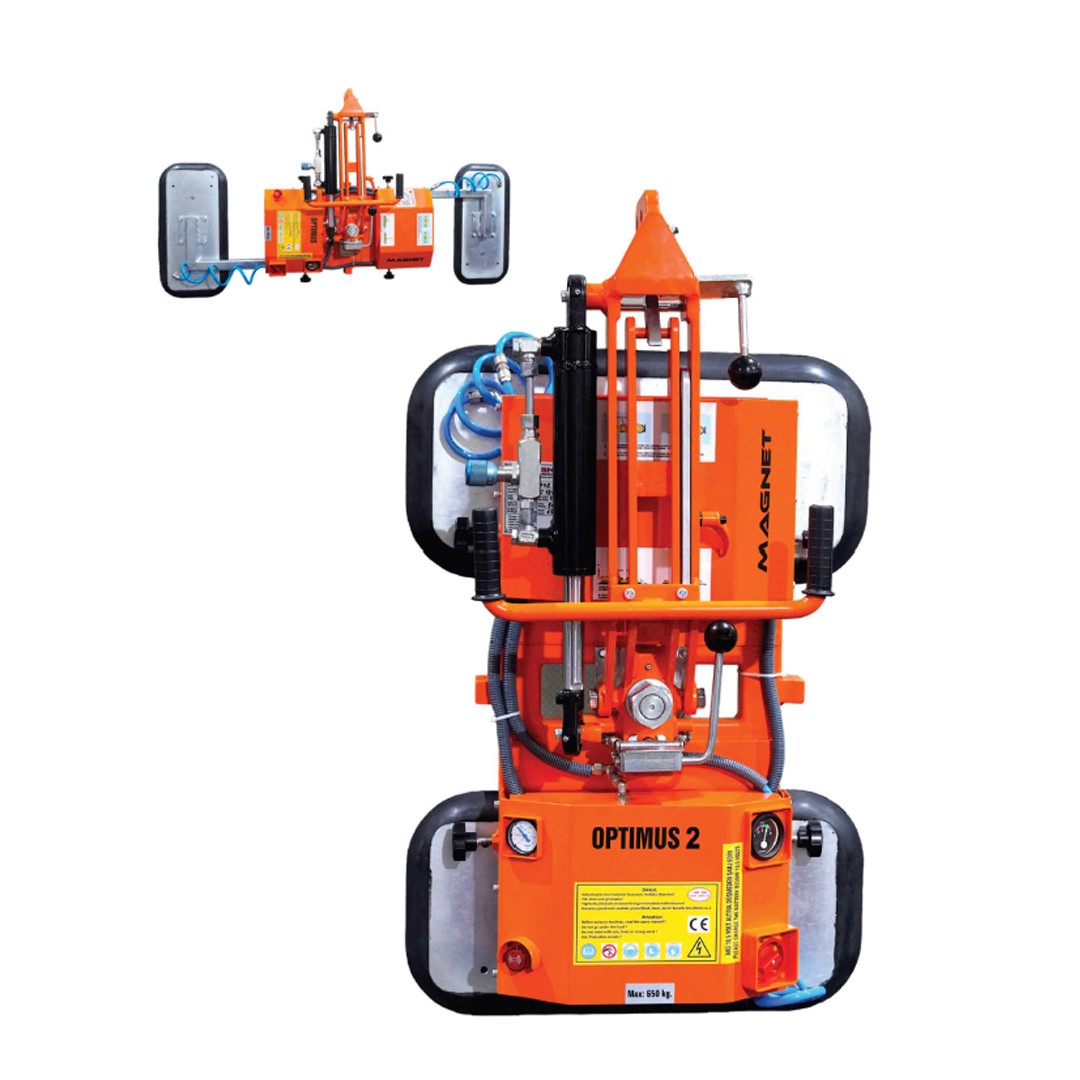

OPTIMUS 2 RK VACUUM LIFTER
OPTIMUS 2 RK VACUUM LIFTER - Görsel 2

OPTIMUS 2 RK VACUUM LIFTER

Category:

OPTIMUS 2 RK VACUUM LIFTER; Radio controlled hold and release function is available. 2 pieces V 350 type suction cups installed the machine. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Lifting capacity is 650 kgs. Vacuum leaking sensor installed the lifter. Manuel hand controlled rotating with safety pin and arm. Manuel hand controlled tilting and lifting with safety pin and arm. Power requirement is 12 V DC single battery operated. Lifter sizes are : 840 – 1.640 x 580 x 282 (h) mm. Glass sizes are : 600 x 850 to 3210 x 6000 mm. Machine weight : 78 kgs. Protected controller buttons and valves. Tilting supported by hydraulic cylinder. Suction arms can be extended.

Technical Specifications

✔Radio controlled hold and release function is available.
✔2 pieces V 350 type suction cups installed the machine
✔Safety tank and automatic vacuum automat include the holder
✔Vacuum filter located over the machine.
✔Lifting capacity is 650 kgs.
✔Vacuum leaking sensor installed the lifter
✔Manuel hand controlled rotating with safety pin and arm.
✔Manuel hand controlled tilting and lifting with safety pin and arm.
✔Power requirement is 12 V DC single battery operated.
✔Lifter sizes are : 840 – 1.640 x 580 x 282 (h) mm.
✔Glass sizes are : 600 x 850 to 3210 x 6000 mm.
✔Machine weight : 78 kgs.
✔Protected controller buttons and valves.
✔Tilting supported by hydraulic cylinder
✔Suction arms can be extended.
