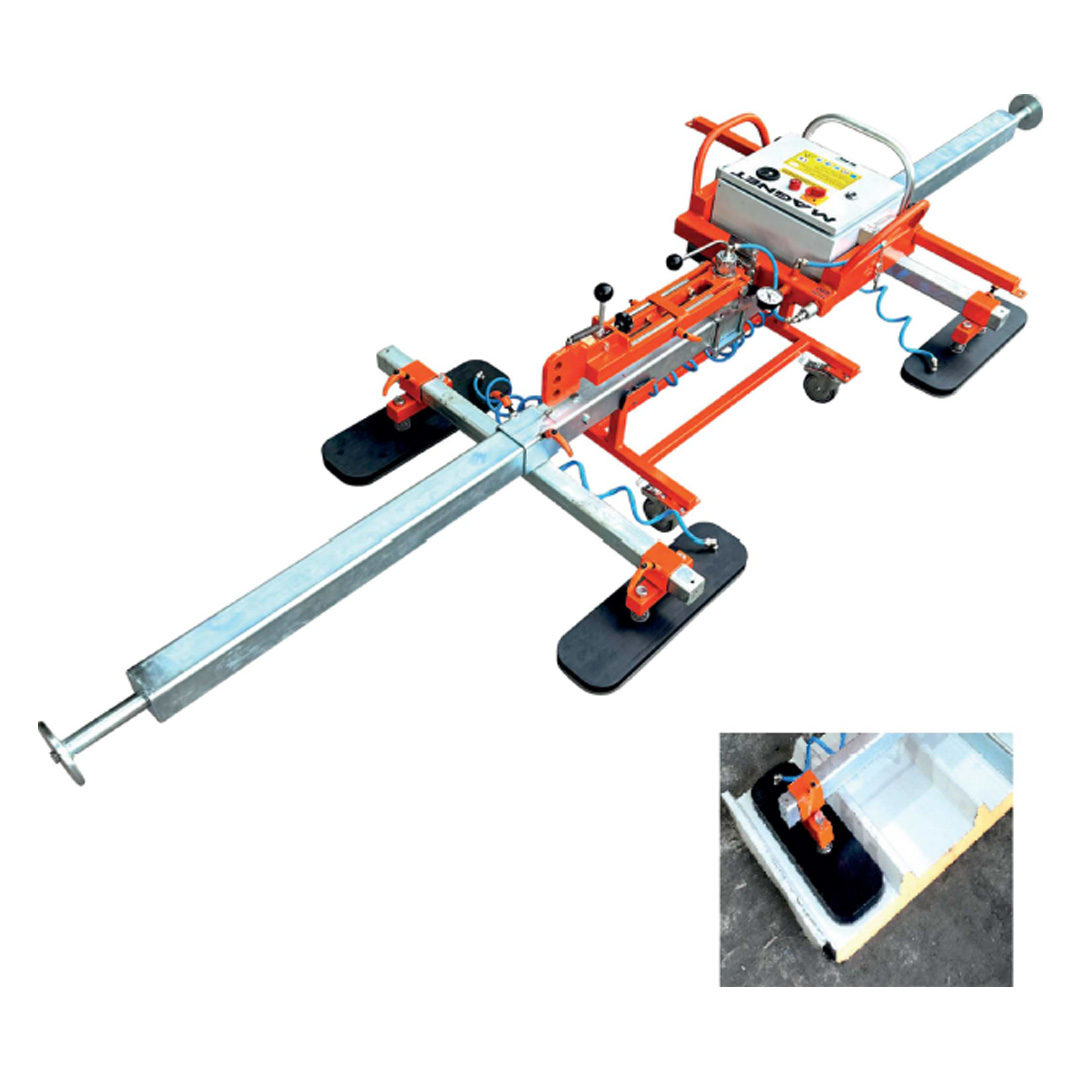

MGVS 4 YDBT SANDWICH PANEL LIFTER
MGVS 4 YDBT SANDWICH PANEL LIFTER - Görsel 2

MGVS 4 YDBT SANDWICH PANEL LIFTER

Category:

MGVS 4 YDBT SANDWICH PANEL LIFTER; 4 pieces S 500 Type vacuum rubbers installed the machine. Suitable for side and roof panels. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Vacuum time between 8 to 48 hours per charge according to glass surface. Lifting capacity is max: 350 kgs. Manuel hand controlled rotating with safety pin and arm. Manuel hand controlled tilting and lifting with safety pin and arm. Manual hand controlled panel holding and release. Power requirement is 12 V DC single battery operated. Lifter sizes are: 3260 x 800 x 550 (h) mm. Panel sizes are: 1000 x 3000 to 1200 x 10.000 mm. Machine weight: 111 kgs. Telescopic arms are located the lifter. The arms spaces can be adjustable. Extension arms can be removable and 3 pieces. You can install the panels on vertical or horizontal position.

Technical Specifications

✔4 pieces S 500 Type vacuum rubbers installed the machine
✔Suitable for side and roof panels.
✔Safety tank and automatic vacuum automat include the holder
✔Vacuum filter located over the machine.
✔Vacuum time between 8 to 48 hours per charge according to glass surface.
✔Lifting capacity is max: 350 kgs.
✔Manuel hand controlled rotating with safety pin and arm.
✔Manuel hand controlled tilting and lifting with safety pin and arm.
✔Manual hand controlled panel holding and release
✔Power requirement is 12 V DC single battery operated.
✔Lifter sizes are: 3260 x 800 x 550 (h) mm.
✔Panel sizes are: 1000 x 3000 to 1200 x 10.000 mm.
✔Machine weight: 111 kgs.
✔Telescopic arms are located the lifter. The arms spaces can be adjustable.
✔Extension arms can be removable and 3 pieces
✔You can install the panels on vertical or horizontal position.
