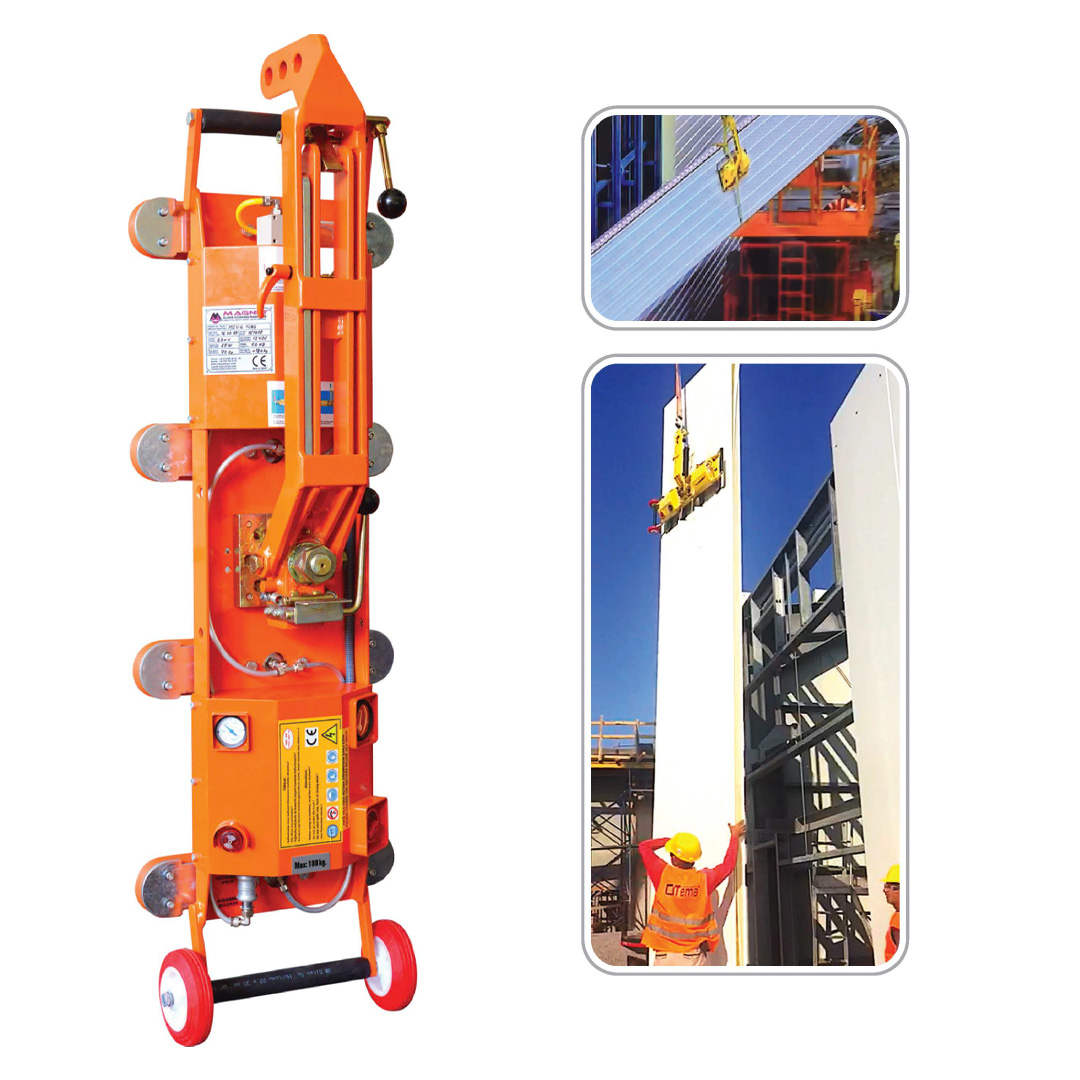

MGVS 4 YDB SANDWICH PANEL LIFTER
MGVS 4 YDB SANDWICH PANEL LIFTER - Görsel 2

MGVS 4 YDB SANDWICH PANEL LIFTER

Category:

MGVS 4 YDB SANDWICH PANEL LIFTER; 4 Pieces S 400 type suction cups located the machine. A filter protecting the safety tank, check valve and vacuum pump is available. The vacuum lifter does not leave the panel between 4 and 8 hours depending on the surface cleaning and charge. Carrying capacity is maximum 175 kg. The electronic sensor that automatically detects vacuum leaks stores vacuum as much as the air escaping. With manual control, the glass can rotate 360 degrees around its axis. It is able to lay panel manually. Spring lock safety pin is available for each movement. It operates with 12 Volt battery. System dimensions are 450 x 1320 x 190 (h) mm. Weight: 50 kgs. Material dimensions: 500 x 1250 to 1100 x 6000 mm. between. It is suitable for facade and roof panels. There are switches and valves protected against external factors.

Technical Specifications

✔4 Pieces S 400 type suction cups located the machine.
✔A filter protecting the safety tank, check valve and vacuum pump is available.
✔The vacuum lifter does not leave the panel between 4 and 8 hours depending on the surface cleaning and charge.
✔Carrying capacity is maximum 175 kg.
✔The electronic sensor that automatically detects vacuum leaks stores vacuum as much as the air escaping.
✔With manual control, the glass can rotate 360 degrees around its axis.
✔It is able to lay panel manually. Spring lock safety pin is available for each movement.
✔It operates with 12 Volt battery.
✔System dimensions are 450 x 1320 x 190 (h) mm. Weight: 50 kgs.
✔Material dimensions: 500 x 1250 to 1100 x 6000 mm. between.
✔It is suitable for facade and roof panels.
✔There are switches and valves protected against external factors.
