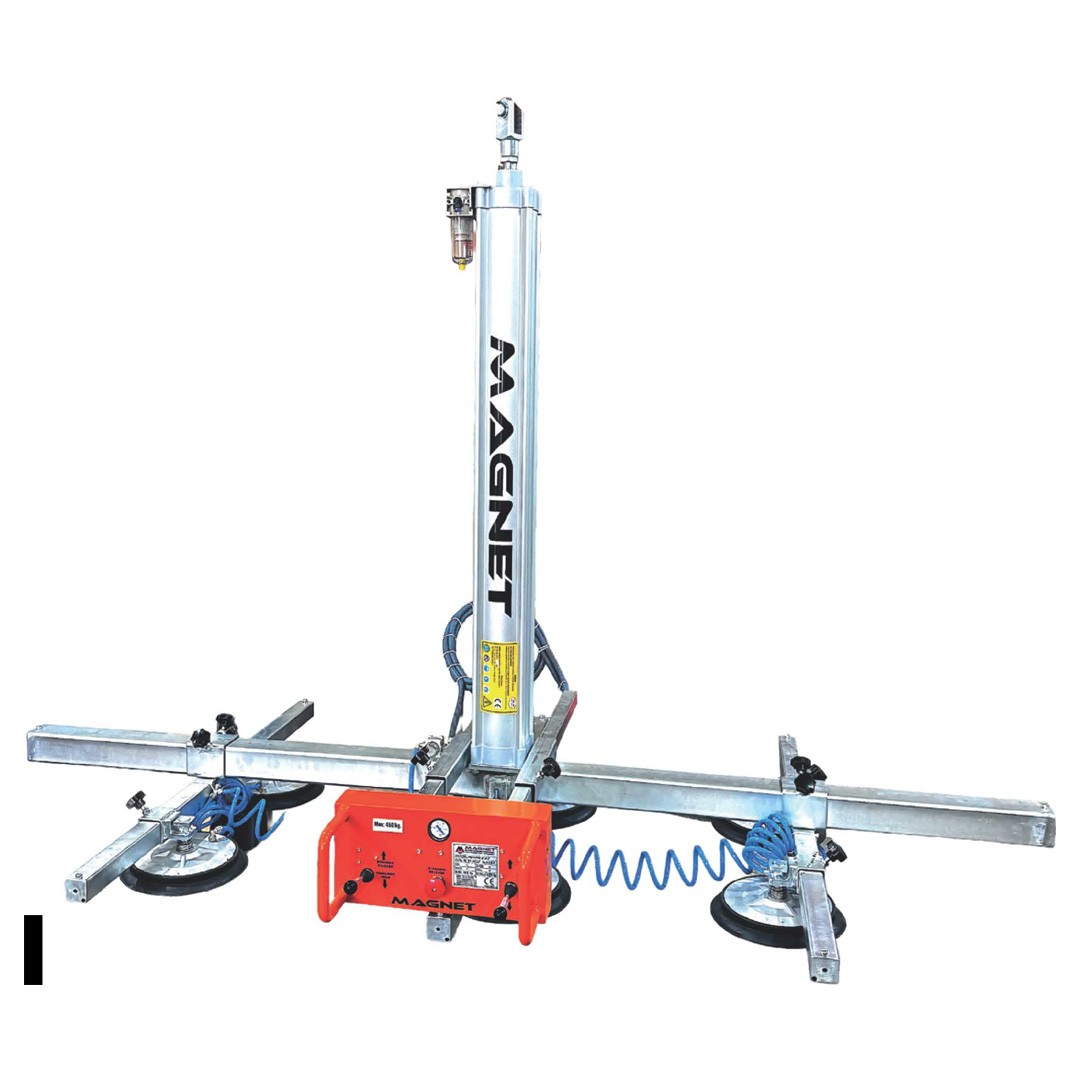

MGVPER 6 H T HORIZONTAL PERISCOPIC VACUUM LIFTER
MGVPER 6 H T HORIZONTAL PERISCOPIC VACUUM LIFTER - Görsel 2

MGVPER 6 H T HORIZONTAL PERISCOPIC VACUUM LIFTER

Category:

MGVPER 6 H T HORIZONTAL PERISCOPIC VACUUM LIFTER; The maximum lifting capacity is 450 kgs. Vacuum lifter dimensions: 925 – 1900 x 2500 x 1725 (h) mm. Weight: 90 kgs. Can be moved glass dimensions: 900 x 1800 to 3210 x 6000 mm. Vacuum lifter can be move 1500 mm. up like periscop with air controlled pneumatic System. All system works with 6 – 8 bar pressed air. Machine has blowing button for emergency release.

Technical Specifications

✔The maximum lifting capacity is 450 kgs.
✔Vacuum lifter dimensions: 925 – 1900 x 2500 x 1725 (h) mm.
✔Weight: 90 kgs.
✔Can be moved glass dimensions: 900 x 1800 to 3210 x 6000 mm.
✔Vacuum lifter can be move 1500 mm. up like periscop with air controlled pneumatic System.
✔All system works with 6 – 8 bar pressed air.
✔Machine has blowing button for emergency release.
