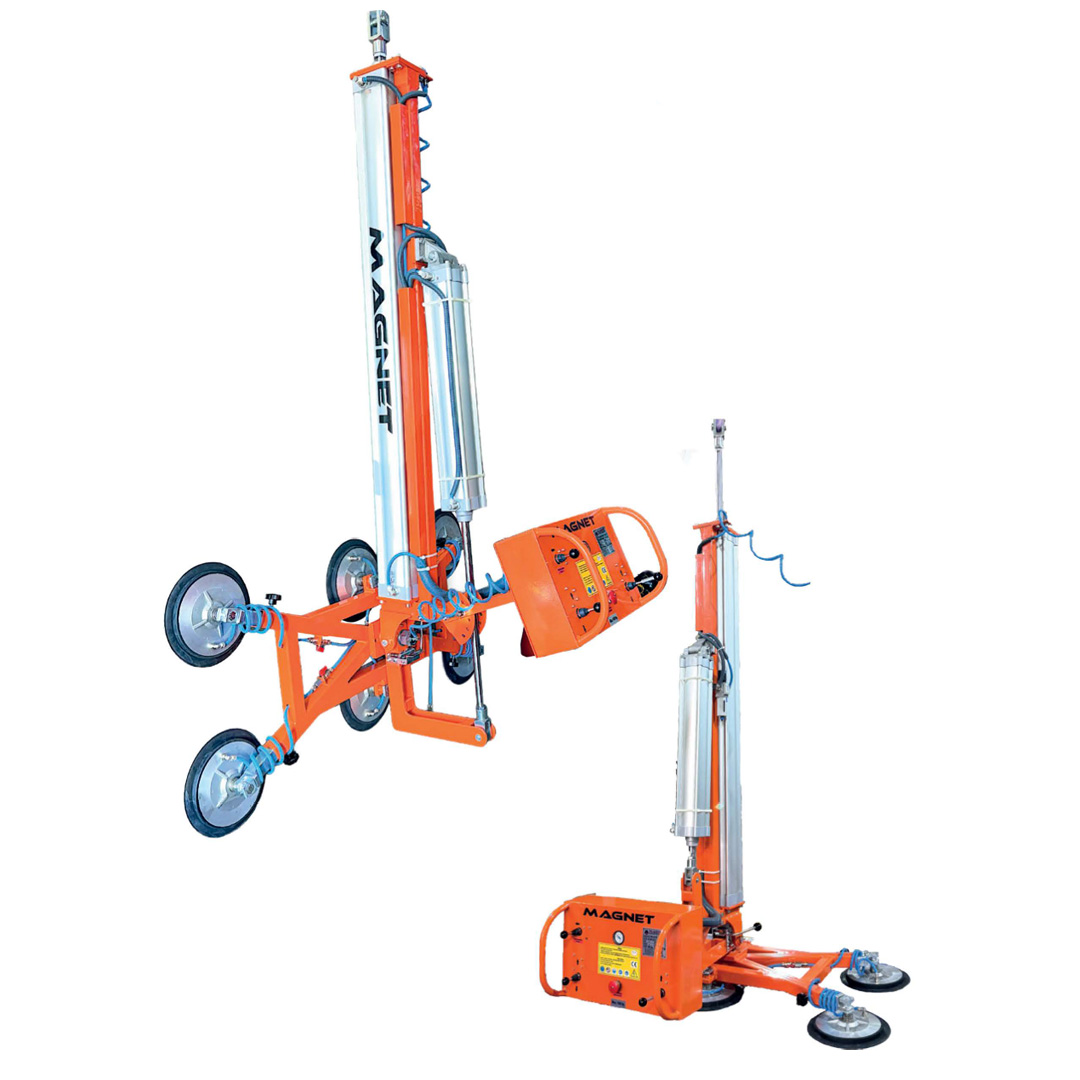

MGVPER 6 AY D T PERISCOPIC AIR POWERED VACUUM LIFTER
MGVPER 6 AY D T PERISCOPIC AIR POWERED VACUUM LIFTER - Görsel 2

MGVPER 6 AY D T PERISCOPIC AIR POWERED VACUUM LIFTER

Category:

MGVPER 6 AY D T PERISCOPIC AIR POWERED VACUUM LIFTER; All functions can be controlled over the control panel. 6 pieces suction cups located the machine. Complete pneumatic controlled system. Lifting capacity : 400 – 450 kgs. ( According to air pressure ) Double lifting speed with periscopic piston Measurements of material to be moved : 350 x 800 to 2500 x 3210 mm. Lifting stroke : 1500 mm. Machine sizes : 700 x 1050 x 2410 ( h ) mm. Total weight : 130 kgs. Able to rotate 90° degrees with manually. Full aluminium construction FESTO ( Germany ) pneumatic material used in the machine. The machine can be tilting full automatically 90 to 0 degrees ( Vertical to horizontal direction ) Telescopic extension arms located the machine.

Technical Specifications

✔All functions can be controlled over the control panel.
✔6 pieces suction cups located the machine.
✔Complete pneumatic controlled system.
✔Lifting capacity : 400 – 450 kgs. ( According to air pressure )
✔Double lifting speed with periscopic piston
✔Measurements of material to be moved : 350 x 800 to 2500 x 3210 mm.
✔Lifting stroke : 1500 mm.
✔Machine sizes : 700 x 1050 x 2410 ( h ) mm.
✔Total weight : 130 kgs.
✔Able to rotate 90° degrees with manually.
✔Full aluminium construction
✔FESTO ( Germany ) pneumatic material used in the machine.
✔The machine can be tilting full automatically 90 to 0 degrees ( Vertical to horizontal direction )
✔Telescopic extension arms located the machine.
