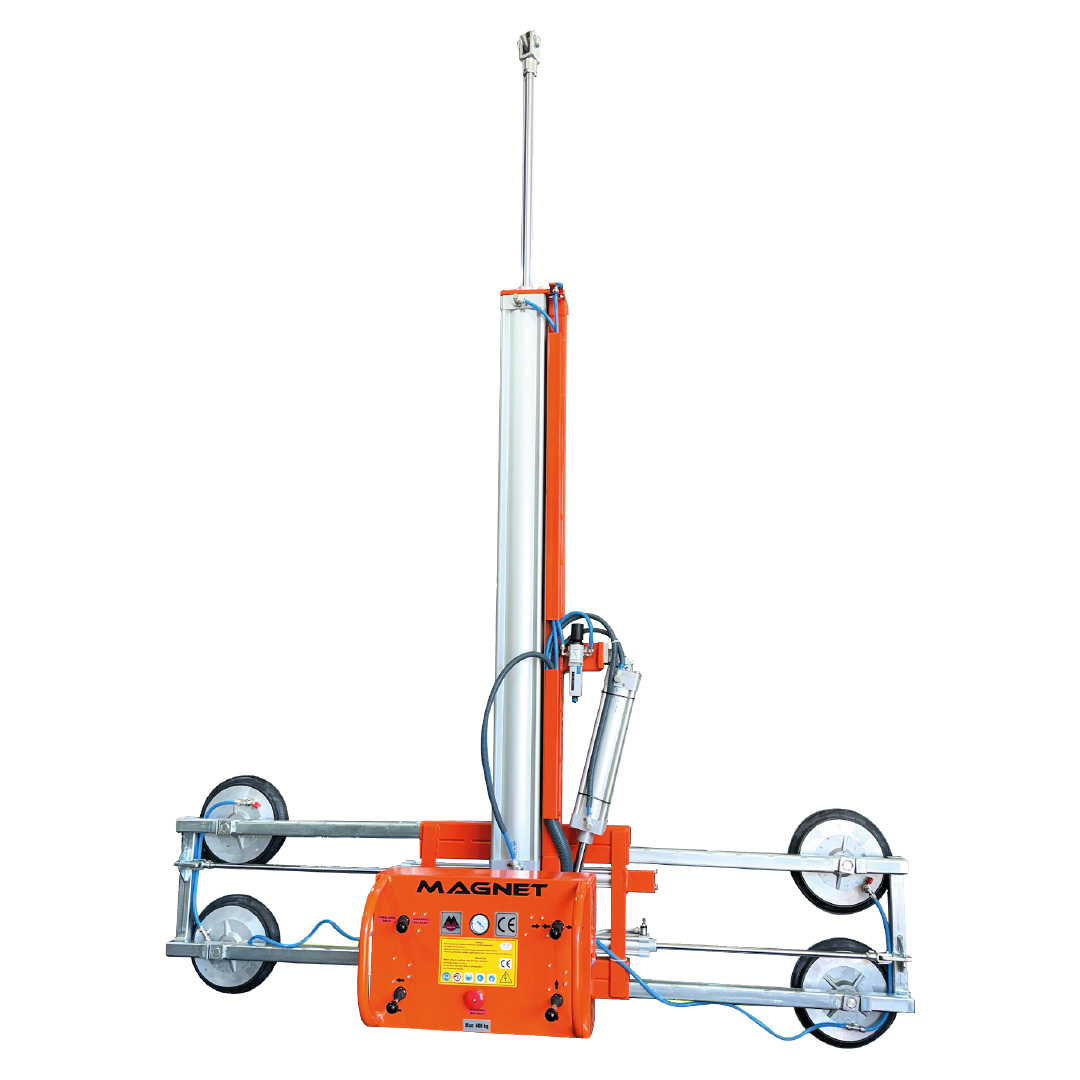

MGVPER 4 AD T PERISCOPIC AIR POWERED VACUUM LIFTER
MGVPER 4 AD T PERISCOPIC AIR POWERED VACUUM LIFTER - Görsel 2

MGVPER 4 AD T PERISCOPIC AIR POWERED VACUUM LIFTER

Category:

MGVPER 4 AD T PERISCOPIC AIR POWERED VACUUM LIFTER; All functions can be controlled over the control panel. 4 pieces suction cups located the machine. Complete pneumatic system. Lifting capacity: 400 kgs. Double lifting speed with periscopic piston. Lifting stroke: 1500 mm. Total weight: 78 kgs. Machine sizes: 800 x 580 x 2200 (h) mm. Glass sizes: 820 x 820 to 2000 x 3000 mm. Able to rotate 90° degrees. Full aluminium construction. Arms can be extended manually. Optional automatic extension like picture. The control panel can be adjusted up and down according to the operator’s height. (The width of the optional MGVPER 4 AD AT model with automatic opening arm is 960 mm.)

Technical Specifications

✔All functions can be controlled over the control panel
✔4 pieces suction cups located the machine
✔Complete pneumatic system
✔Lifting capacity: 400 kgs.
✔Double lifting speed with periscopic piston
✔Lifting stroke: 1500 mm.
✔Total weight: 78 kgs.
✔Machine sizes: 800 x 580 x 2200 (h) mm.
✔Glass sizes: 820 x 820 to 2000 x 3000 mm.
✔Able to rotate 90° degrees
✔Full aluminium construction
✔Arms can be extended manually. Optional automatic extension like picture
✔The control panel can be adjusted up and down according to the operator’s height.
