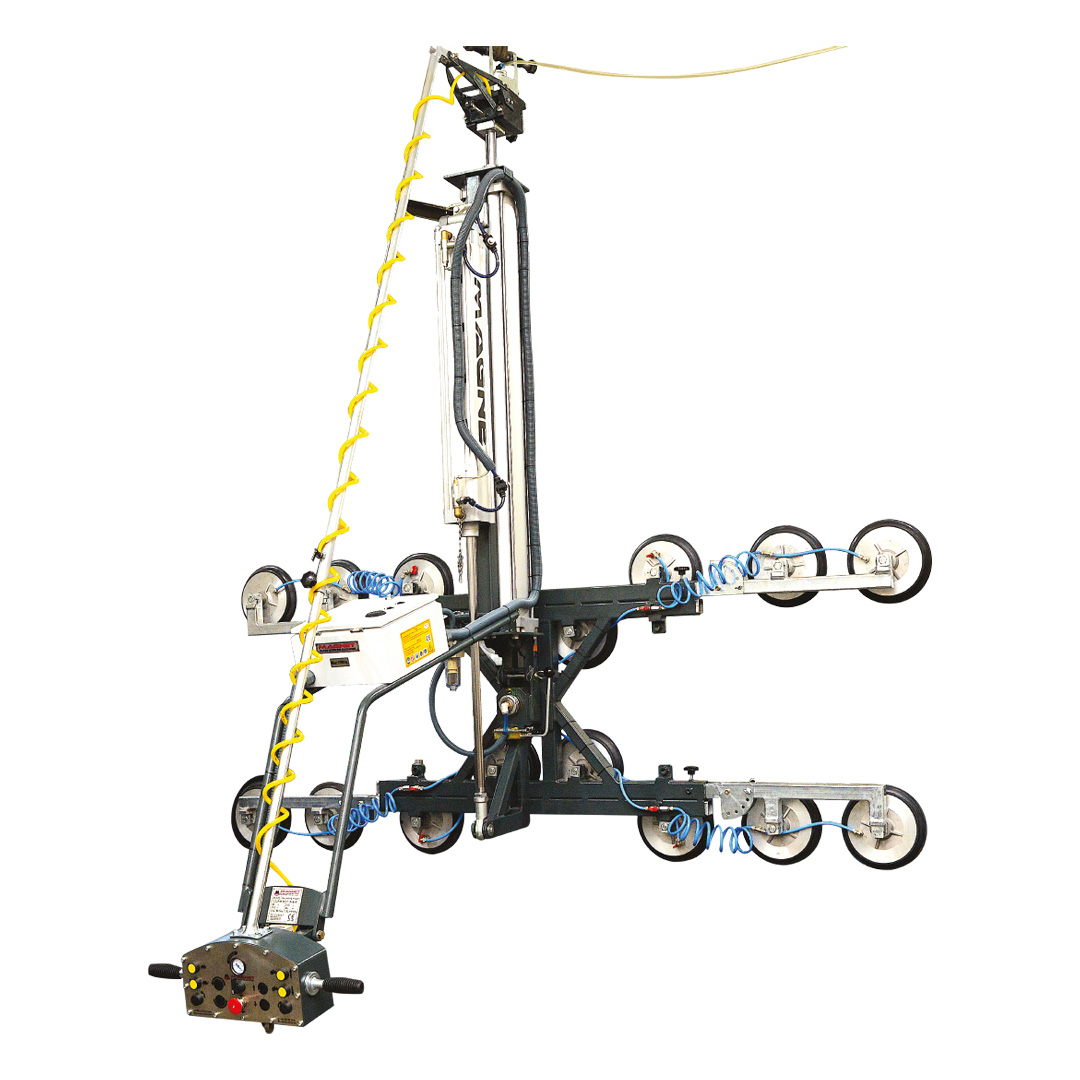

MGVPER 14 AY D T AIR CONTROLLED VACUUM LIFTER
MGVPER 14 AY D T AIR CONTROLLED VACUUM LIFTER - Görsel 2

MGVPER 14 AY D T AIR CONTROLLED VACUUM LIFTER

Category:

MGVPER 14 AY D T AIR CONTROLLED VACUUM LIFTER; All functions can be controlled over the control panel. 14 pieces suction cups located the machine. Complete pneumatic system. Lifting capacity : 1000 kgs. Max. (over 8 bar ) Double lifting speed with periscopic piston. Telescopic extended arms. Lifting stroke : 1400 mm. Total weight : 359 kgs. Machine sizes : 1720 x 2000 x 2580 ( h ) mm. Glass sizes : 850 x 1250 to 3210 x 6000 mm. FESTO ( Germany ) pneumatic material used in the machine. Able to tilts 90 to 0 degrees automatically. Low-E coated glass protection pads carry 500 kgs. of glass.

Technical Specifications

✔All functions can be controlled over the control panel
✔14 pieces suction cups located the machine
✔Complete pneumatic system
✔Lifting capacity : 1000 kgs. Max. (over 8 bar )
✔Double lifting speed with periscopic piston
✔Telescopic extended arms.
✔Lifting stroke : 1400 mm.
✔Total weight : 359 kgs.
✔Machine sizes : 1720 x 2000 x 2580 ( h ) mm.
✔Glass sizes : 850 x 1250 to 3210 x 6000 mm.
✔FESTO ( Germany ) pneumatic material used in the machine.
✔Able to tilts 90 to 0 degrees automatically.
✔Low-E coated glass protection pads carry 500 kgs. of glass.
