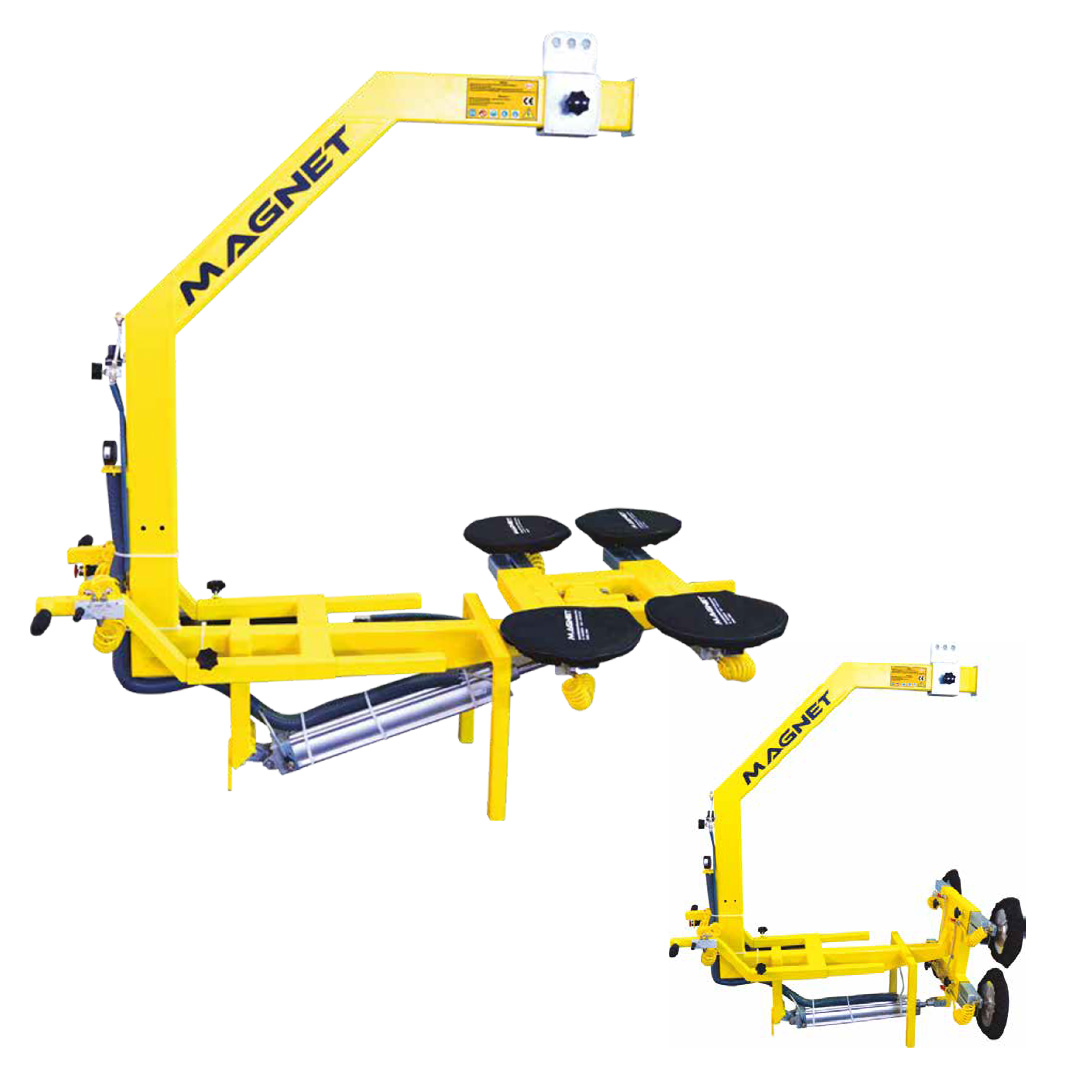

MGVP 4 AY T C VACUUM LIFTER
MGVP 4 AY T C VACUUM LIFTER - Görsel 2

MGVP 4 AY T C VACUUM LIFTER

Category:

MGVP 4 AY T C VACUUM LIFTER; 4 pieces 285 mm.diameter suction cups located the machine. Motorcycle type controller arms. Quick release (blower) valve installed the machine. Telescopic prolonged arms. Air consumption : 6 – 8 bar clean pressed air. Lifting capacity is : 300 – 350 kgs according to air pressure. Machine sizes : 1040 – 2000 ( With extended arms ) x 1780 x 1950 (h) mm. Glass sizes : 900 x 700 mm. to 3210 x 2500 mm. Suction cups location sizes : 870 – 2000 x 690 mm. Pneumatically tilting 90 – 180 degree front and rear direction. Machine weight : 133,5 kgs. Hook location can be change according to weight.

Technical Specifications

✔4 pieces 285 mm.diameter suction cups located the machine
✔Motorcycle type controller arms
✔Quick release (blower) valve installed the machine
✔Telescopic prolonged arms
✔Air consumption : 6 – 8 bar clean pressed air.
✔Lifting capacity is : 300 – 350 kgs according to air pressure.
✔Machine sizes : 1040 – 2000 ( With extended arms ) x 1780 x 1950 (h) mm.
✔Glass sizes : 900 x 700 mm. to 3210 x 2500 mm.
✔Suction cups location sizes : 870 – 2000 x 690 mm.
✔Pneumatically tilting 90 – 180 degree front and rear direction.
✔Machine weight : 133,5 kgs.
✔Hook location can be change according to weight.
