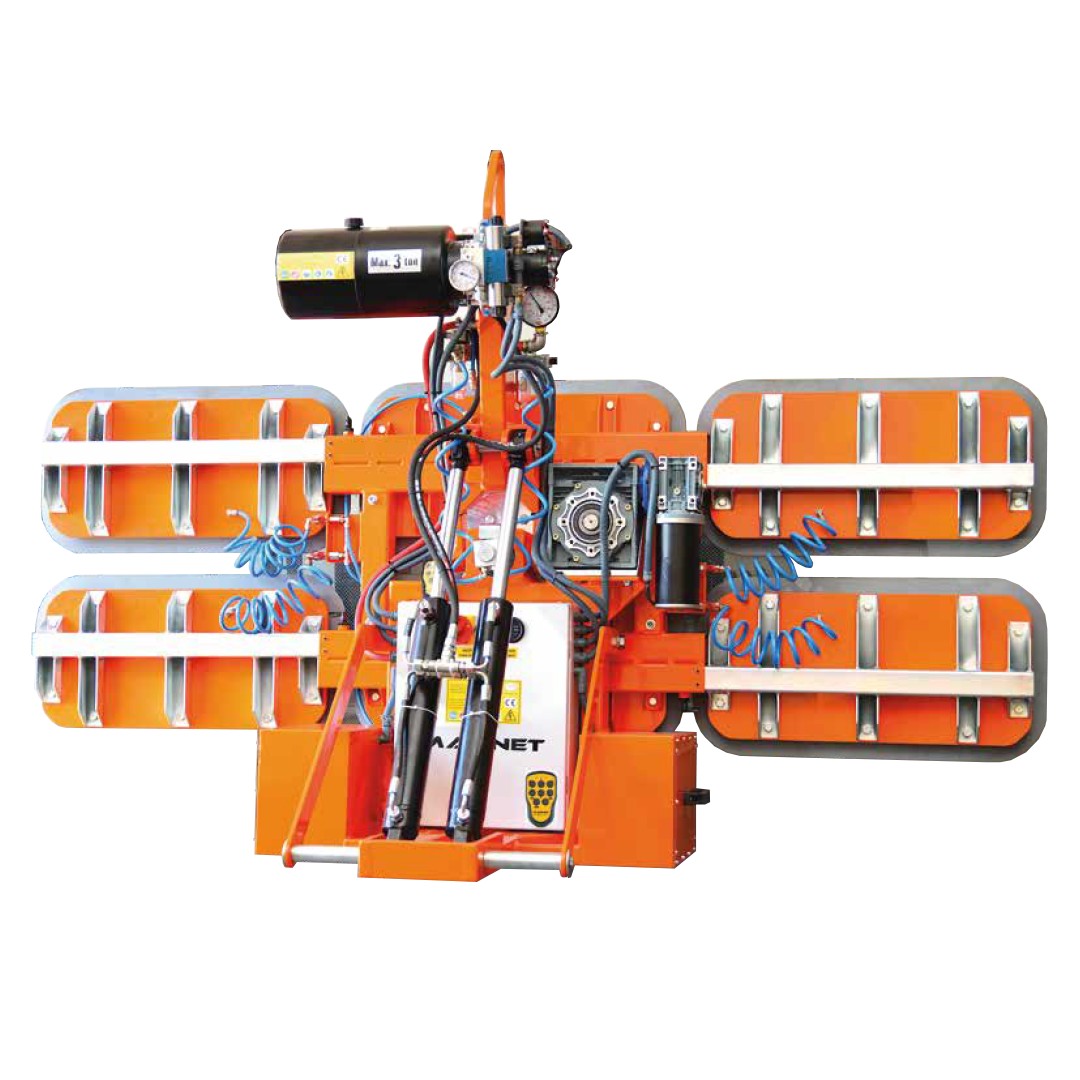

MGVB 6 RK AY AD B T VACUUM LIFTER
MGVB 6 RK AY AD B T VACUUM LIFTER - Görsel 2

MGVB 6 RK AY AD B T VACUUM LIFTER

Category:

MGVB 6 RK AY AD B T VACUUM LIFTER; There are 6 German-made V 400 type suction cups in the MGVB 6 Y AD B T model. When the outer suction cups arms are removed, 2 suction cups remain in the middle. It creates vacuum by means of radio control with a 24 Volt battery, automatically tilts hydraulically and rotates automatically with a reducer. The vacuum system has double tanks, double safety valves, double vacuum gauges and double vacuum pumps. Lifting capacity per suction cup is 400 kgs. The arms of the apparatus are extended telescopically and the closed size from the tire to the tire is 850 x 950 mm. (When the outer arms are removed) Glass dimensions it can carry: 900 x 1000 mm. with 3210 x 8000 mm. are among. There will be a valve on each suction cup so that it can work in a single row. Vacuum carrier dimensions: 2510 – 4430 x 1000 x 1600 ( h ) mm. Weight: 536 kgs. There is a wheeled trolley for the machine to be moved easily. Tires are multifunctional angularly movable. Maximum carrying capacity of 2200 kg. is. Our device has independent double vacuum circuit in accordance with CE, ISO 9001 – 2000, EN 13155 : 2003 + A2 norms.

Technical Specifications

✔There are 6 German-made V 400 type suction cups in the MGVB 6 Y AD B T model.
✔When the outer suction cups arms are removed, 2 suction cups remain in the middle.
✔It creates vacuum by means of radio control with a 24 Volt battery, automatically tilts hydraulically and rotates automatically with a reducer.
✔The vacuum system has double tanks, double safety valves, double vacuum gauges and double vacuum pumps.
✔Lifting capacity per suction cup is 400 kgs.
✔The arms of the apparatus are extended telescopically and the closed size from the tire to the tire is 850 x 950 mm. (When the outer arms are removed)
✔Glass dimensions it can carry: 900 x 1000 mm. with 3210 x 8000 mm. are among.
✔There will be a valve on each suction cup so that it can work in a single row.
✔Vacuum carrier dimensions: 2510 – 4430 x 1000 x 1600 ( h ) mm. Weight: 536 kgs.
✔There is a wheeled trolley for the machine to be moved easily.
✔Tires are multifunctional angularly movable.
✔Maximum carrying capacity of 2200 kg. is.
✔Our device has independent double vacuum circuit in accordance with CE, ISO 9001 – 2000, EN 13155 : 2003 + A2 norms.
