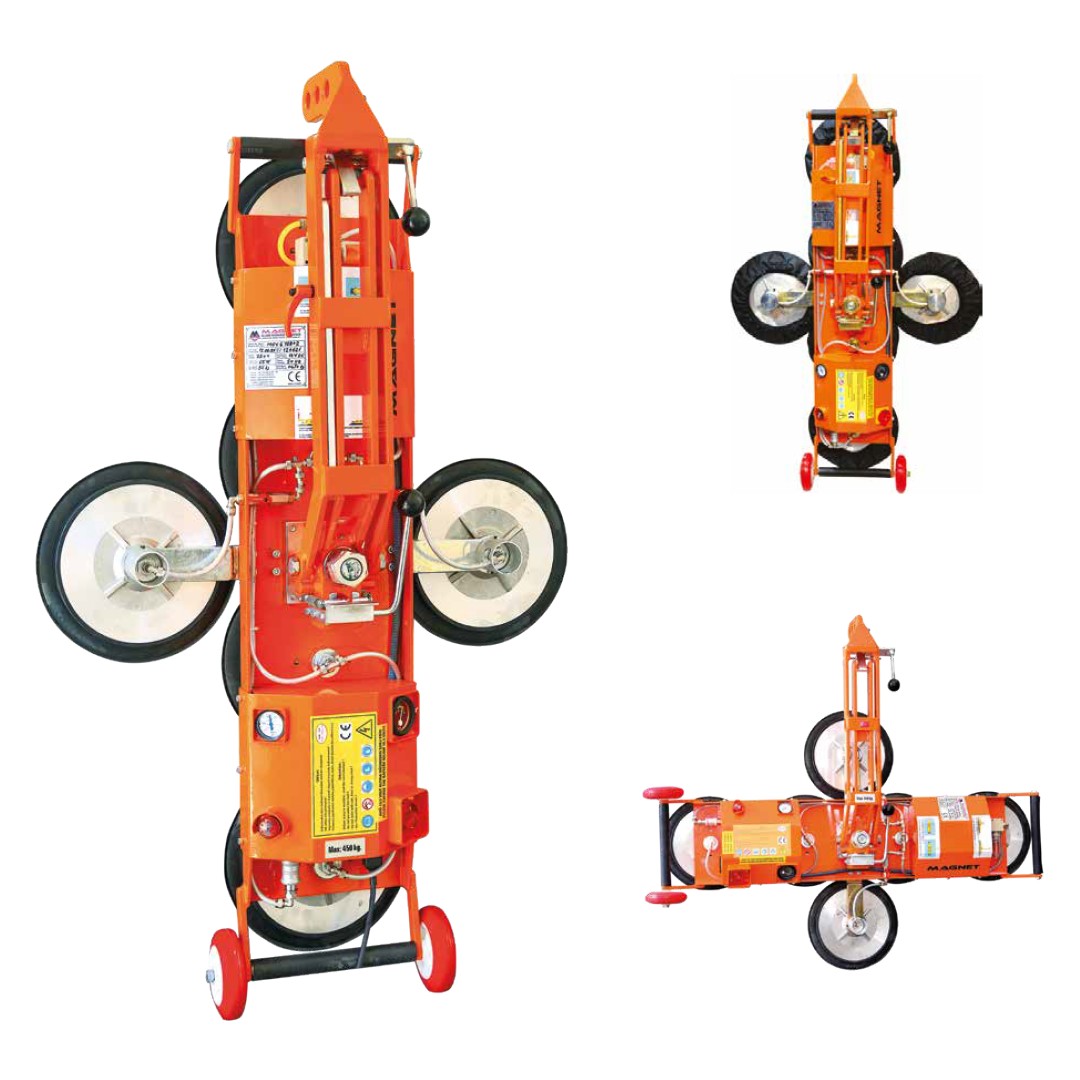

MGV4 YDB + 2 VACUUM LIFTER
MGV4 YDB + 2 VACUUM LIFTER - Görsel 2

MGV4 YDB + 2 VACUUM LIFTER

Category:

MGV4 YDB + 2 VACUUM LIFTER; 6 pieces vacuum rubber installed the machine. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Vacuum time between 8 to 48 hours per charge according to glass surface. Lifting capacity is 450 kgs. Manuel hand controlled rotating with safety pin and arm. Manuel hand controlled tilting and lifting with safety pin and arm. Power requirement is 12 V DC single battery operated. Lifter sizes are: 830 x 1320 x 190 (h) mm. Glass sizes are: 850 x 1250 to 2500 x 4000 mm. Machine weight: 55,3 kgs.

Technical Specifications

✔6 pieces vacuum rubber installed the machine.
✔Safety tank and automatic vacuum automat include the holder.
✔Vacuum filter located over the machine.
✔Vacuum time between 8 to 48 hours per charge according to glass surface.
✔Lifting capacity is 450 kgs.
✔Manuel hand controlled rotating with safety pin and arm.
✔Manuel hand controlled tilting and lifting with safety pin and arm.
✔Power requirement is 12 V DC single battery operated.
✔Lifter sizes are: 830 x 1320 x 190 (h) mm.
✔Glass sizes are: 850 x 1250 to 2500 x 4000 mm.
✔Machine weight: 55,3 kgs.
