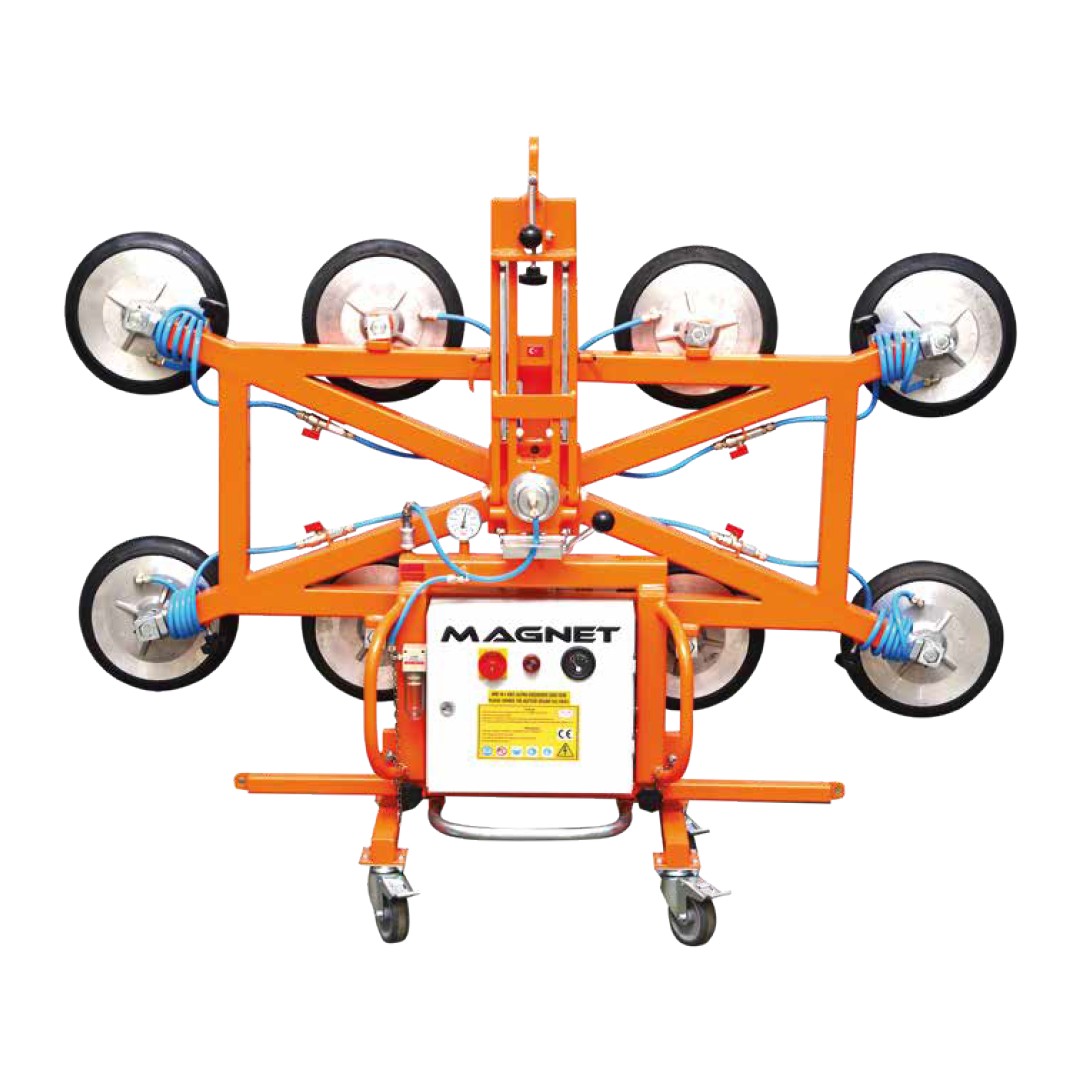

MGV 8 YDBT VACUUM LIFTER
MGV 8 YDBT VACUUM LIFTER - Görsel 2

MGV 8 YDBT VACUUM LIFTER

Category:

MGV 8 YDBT VACUUM LIFTER; 8 pieces vacuum rubber installed the machine. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Vacuum time between 8 to 48 hours per charge according to glass surface. Lifting capacity is 650 kgs. Manuel hand controlled rotating with safety pin and arm. Manuel hand controlled tilting and lifting with safety pin and arm. Power requirement is 12 V DC single battery operated. Lifter sizes are: 1720 x 350 x 1230 (h) mm. Glass sizes are: 950 x 950 to 3210 x 6000 mm. Telescopic prolonged arms are located the lifter. Machine weight: 95,2 kgs.

Technical Specifications

✔8 pieces vacuum rubber installed the machine.
✔Safety tank and automatic vacuum automat include the holder.
✔Vacuum filter located over the machine.
✔Vacuum time between 8 to 48 hours per charge according to glass surface.
✔Lifting capacity is 650 kgs.
✔Manuel hand controlled rotating with safety pin and arm.
✔Manuel hand controlled tilting and lifting with safety pin and arm.
✔Power requirement is 12 V DC single battery operated.
✔Lifter sizes are: 1720 x 350 x 1230 (h) mm.
✔Glass sizes are: 950 x 950 to 3210 x 6000 mm.
✔Telescopic prolonged arms are located the lifter.
✔Machine weight: 95,2 kgs.
