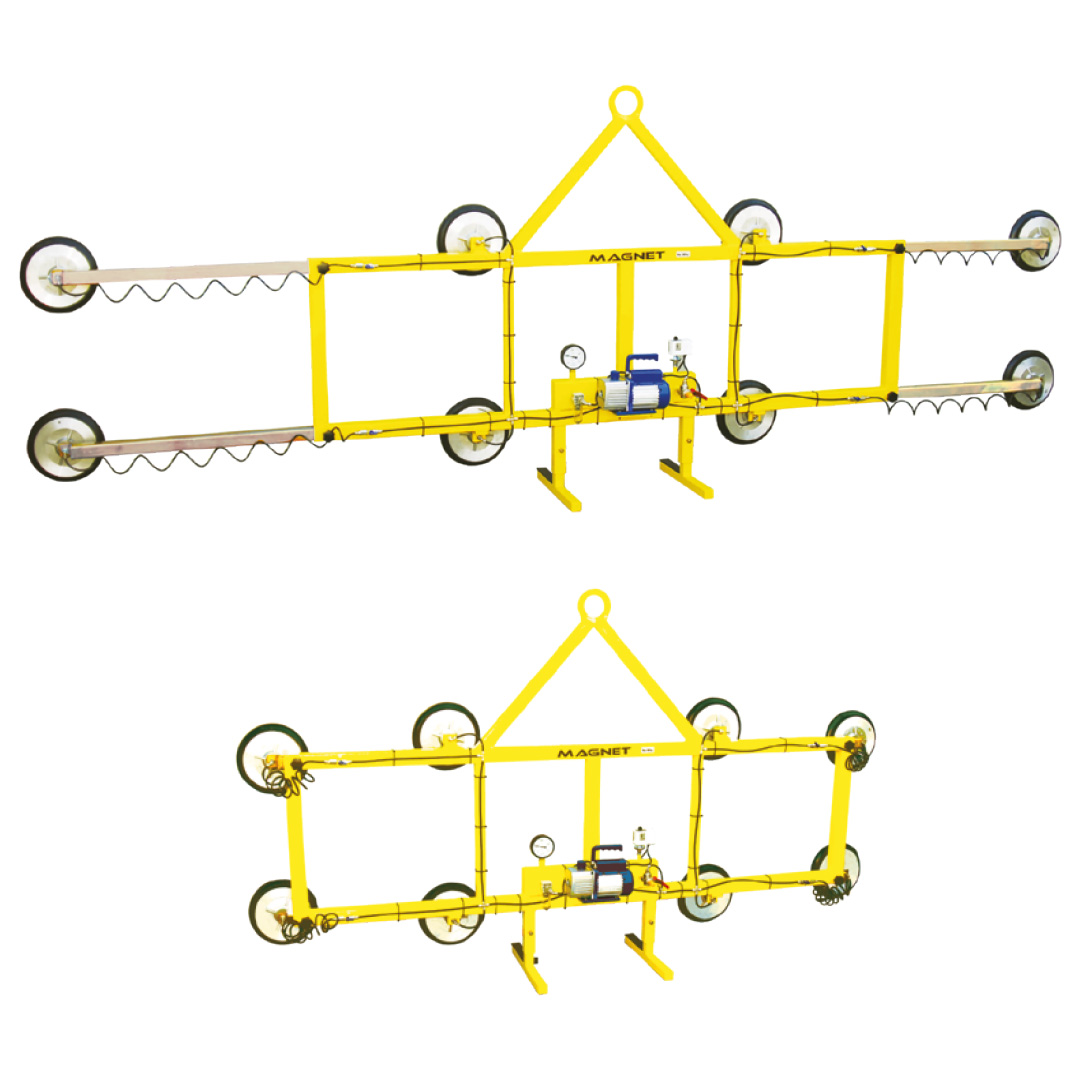

MGV 8 T TELESCOPIC VAC. LIFTER

Category:

MGV 8 T TELESCOPIC VAC. LIFTER; Capacity: 650 kgs. Electricity: 0.37 kWh single phase 220 V current. Suckers: 8 pieces. Sizes of glass sheet: 1600 x 2100 to 3210 x 6000 mm. Sizes of lifter: 2890 (4000 mm. when arms open) x 320 (490 mm. with legs) x 1640 (h) mm. Emergency vacuum tank keeps vacuum safety against accidently falls. Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted. Vacuum filter protects the vacuum pump. Horizontal telescopic prolonged arms. Lifter weight: 107 kgs.

Technical Specifications

✔Capacity: 650 kgs.
✔Electricity: 0.37 kWh single phase 220 V current.
✔Suckers: 8 pieces.
✔Sizes of glass sheet: 1600 x 2100 to 3210 x 6000 mm.
✔Sizes of lifter: 2890 (4000 mm. when arms open) x 320 (490 mm. with legs) x 1640 (h) mm.
✔Emergency vacuum tank keeps vacuum safety against accidently falls.
✔Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted.
✔Vacuum filter protects the vacuum pump.
✔Horizontal telescopic prolonged arms.
✔Lifter weight: 107 kgs.
