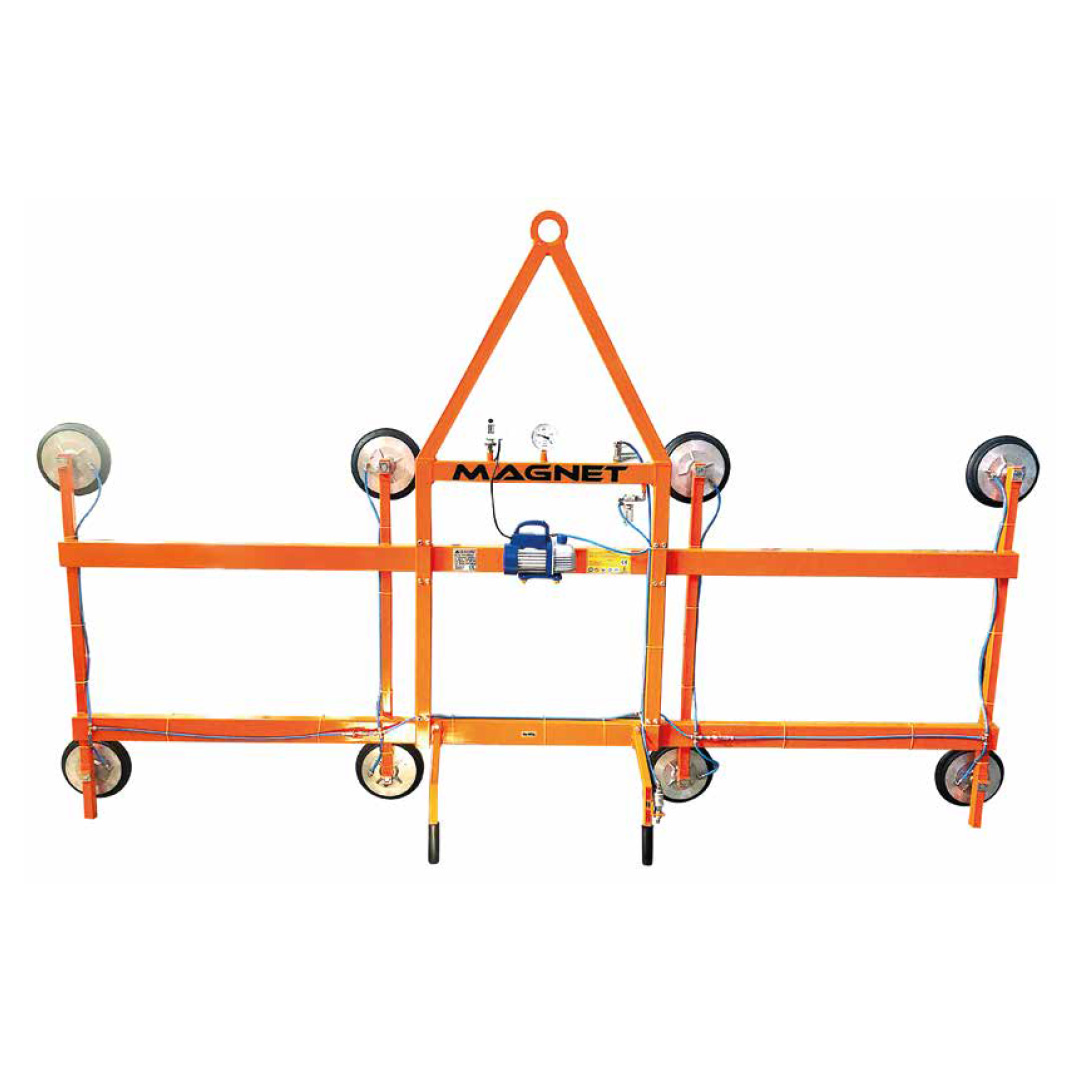

MGV 8 FIXED JUMBO VACUUM LIFTER
MGV 8 FIXED JUMBO VACUUM LIFTER - Görsel 2

MGV 8 FIXED JUMBO VACUUM LIFTER

Category:

MGV 8 FIXED JUMBO VACUUM LIFTER; Capacity: 650 kgs. Electricity: 0.37 kWh single phase 220 V current. Suckers: 8 pieces Sizes of glass sheet: 2000 x 3210 3210 x 6000 mm. Sizes of lifter: 3800 x 430 x 2420 (h) mm. Emergency vacuum tank keeps vacuum safety against accidently falls. Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted. Vacuum filter protects the vacuum pump. Horizontal fixed arms. Lifter weight: 120 kgs.

Technical Specifications

✔Capacity: 650 kgs.
✔Electricity: 0.37 kWh single phase 220 V current.
✔Suckers: 8 pieces
✔Sizes of glass sheet: 2000 x 3210 3210 x 6000 mm.
✔Sizes of lifter: 3800 x 430 x 2420 (h) mm.
✔Emergency vacuum tank keeps vacuum safety against accidently falls.
✔Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted.
✔Vacuum filter protects the vacuum pump.
✔Horizontal fixed arms.
✔Lifter weight: 120 kgs.
