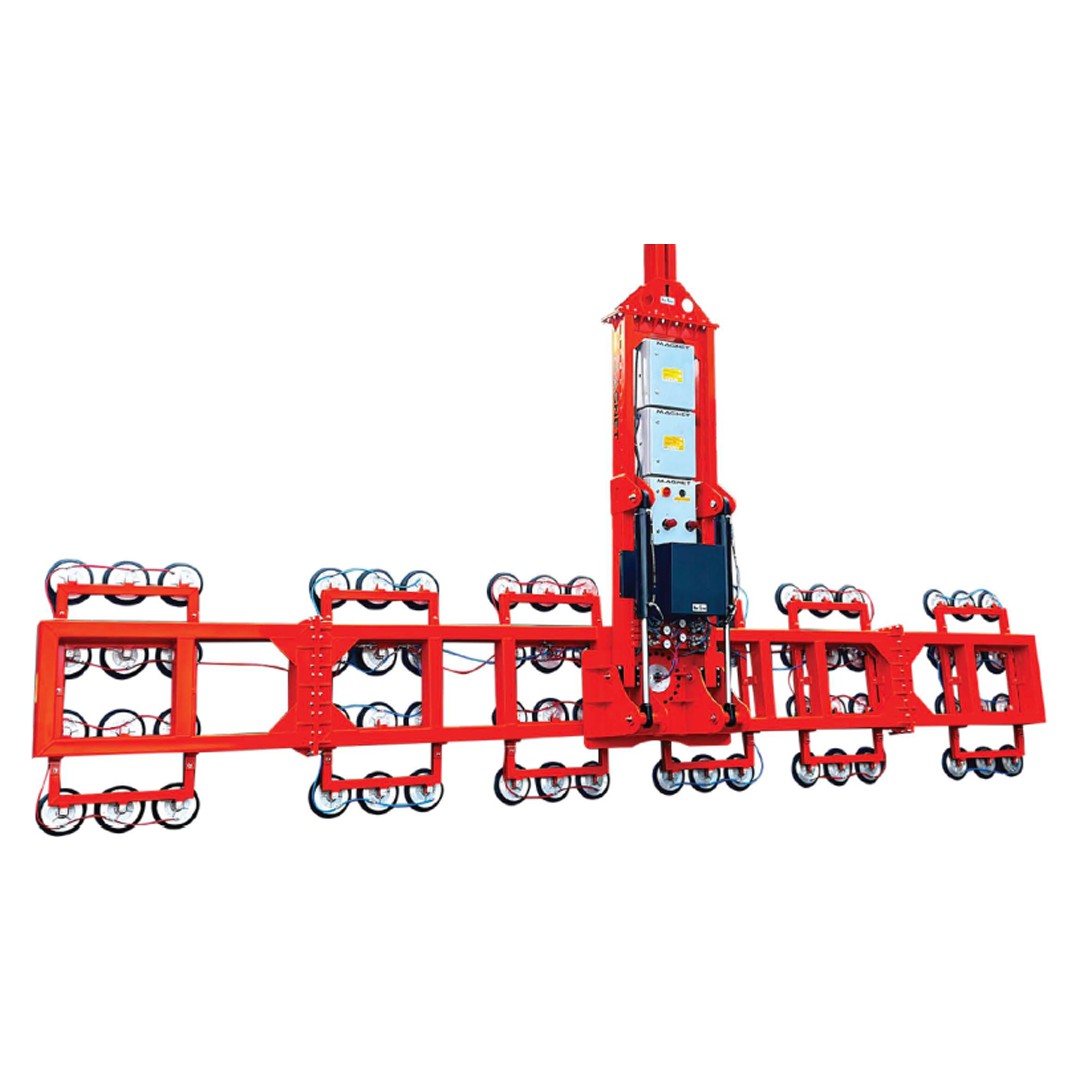

MGV 72 RK AY AD B T VACUUM LIFTER
MGV 72 RK AY AD B T VACUUM LIFTER - Görsel 2

MGV 72 RK AY AD B T VACUUM LIFTER

Category:

MGV 72 RK AY AD B T VACUUM LIFTER; There are 72 V 300 type suction cups. The vacuum lifter has 4 independent vacuum circuits and also has safety tanks and valves. There is a filter system that protects the vacuum pumps. The maximum lifting capacity is 5000 kg. It picks up and releases the material via radio control. It can automatically rotate 360 degrees around its own axis via radio control. It can tilt 90 degrees via radio control. Machine dimensions: 5000 (length with arms removed) -8200 (length with arms included) x 1700 (width) x 3700 (h) mm with arms in upright position. Height with additional arm is 5000 mm. Glass dimensions: 1,250 x 1,750-3,210 x 10,000 mm. The apparatus weighs 2,480 kg. The outer arms can be removed. This allows smaller glass sizes to be transported. The outer suction cups can be closed with valves to transport small glass or easily removed with quick couplings. Our device complies with CE, ISO 9001-2000, and EN 13155: 2003 + A2 standards. A charging device capable of operating between 220 V and 240 V is available. It operates on a 24 V DC battery.

Technical Specifications

✔There are 72 V 300 type suction cups.
✔The vacuum lifter has 4 independent vacuum circuits and also has safety tanks and valves.
✔There is a filter system that protects the vacuum pumps.
✔The maximum lifting capacity is 5000 kg.
✔It picks up and releases the material via radio control.
✔It can automatically rotate 360 degrees around its own axis via radio control.
✔It can tilt 90 degrees via radio control.
✔Machine dimensions: 5000 (length with arms removed) -8200 (length with arms included) x 1700 (width) x 3700 (h) mm with arms in upright position.
✔Height with additional arm is 5000 mm.
✔Glass dimensions: 1,250 x 1,750-3,210 x 10,000 mm.
✔The apparatus weighs 2,480 kg.
✔The outer arms can be removed. This allows smaller glass sizes to be transported.
✔The outer suction cups can be closed with valves to transport small glass or easily removed with quick couplings.
✔Our device complies with CE, ISO 9001-2000, and EN 13155: 2003 + A2 standards.
✔A charging device capable of operating between 220 V and 240 V is available. It operates on a 24 V DC battery.
