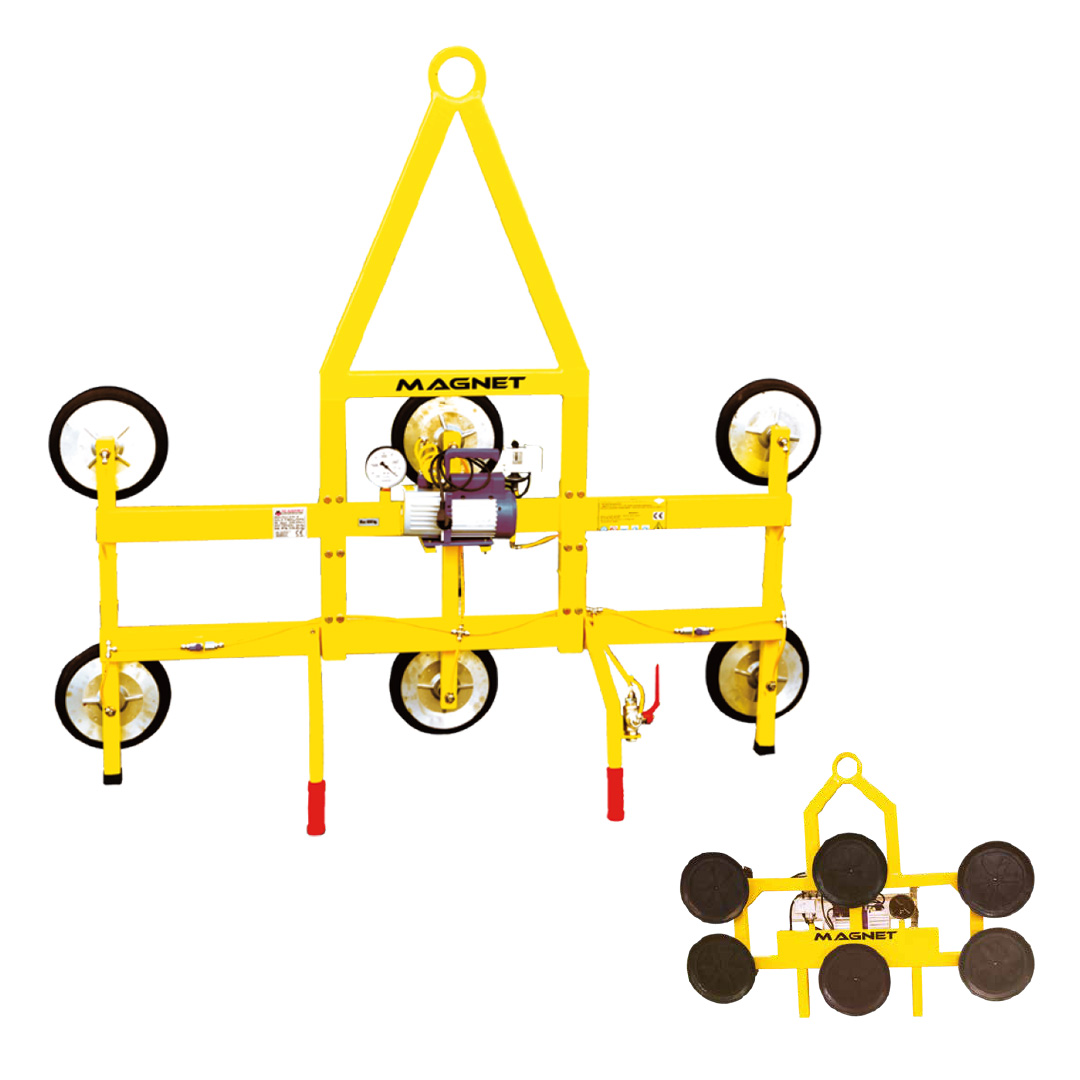

MGV 6 FIXED VACUUM LIFTER
MGV 6 FIXED VACUUM LIFTER - Görsel 2

MGV 6 FIXED VACUUM LIFTER

Category:

MGV 6 FIXED VACUUM LIFTER; Capacity: 450 kgs. Electricity: 0.37 kWh single phase 220 V current. Suckers: 6 pieces. Sizes of glass sheet: 350 x 750 between 2500 x 3210 mm. Sizes of lifter: 1980 x 530 x 1800 (h) mm. Emergency vacuum tank keeps vacuum safety against accidently falls. Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted. Vacuum filter protects the vacuum pump. Horizontal fixed arms. Lifter weight: 74 kgs.

Technical Specifications

✔Capacity: 450 kgs.
✔Electricity: 0.37 kWh single phase 220 V current.
✔Suckers: 6 pieces.
✔Sizes of glass sheet: 350 x 750 between 2500 x 3210 mm.
✔Sizes of lifter: 1980 x 530 x 1800 (h) mm.
✔Emergency vacuum tank keeps vacuum safety against accidently falls.
✔Vacuum installation is equipped with a vacuum regulator which allows vacuum to be adjusted according to the thickness of the plate to be lifted.
✔Vacuum filter protects the vacuum pump.
✔Horizontal fixed arms.
✔Lifter weight: 74 kgs.
