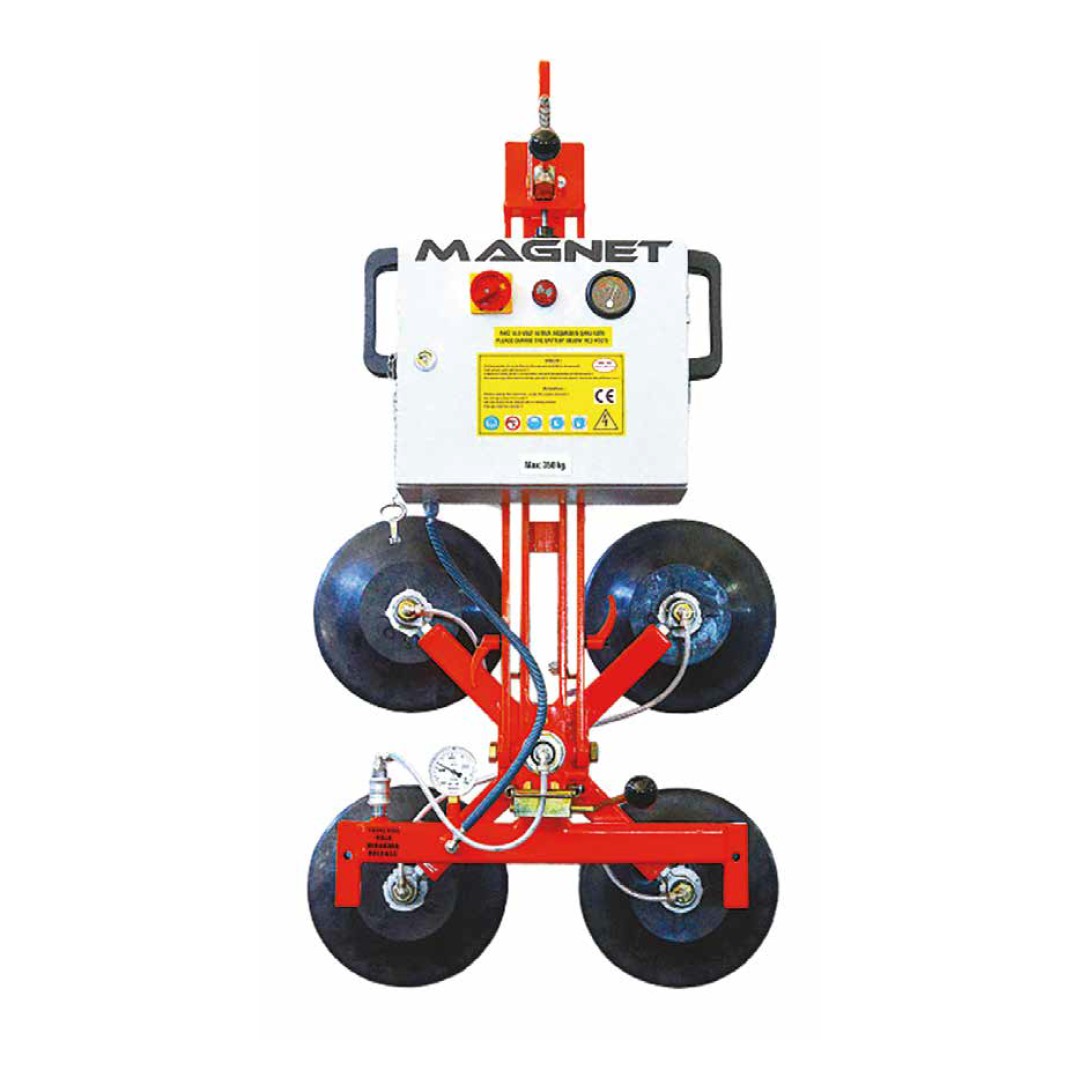

MGV 4 YDBRX CURVED VACUUM LIFTER
MGV 4 YDBRX CURVED VACUUM LIFTER - Görsel 2

MGV 4 YDBRX CURVED VACUUM LIFTER

Category:

MGV 4 YDBRX CURVED VACUUM LIFTER; Specialized designed for spheric bended glasses. 4 pieces R 300 special concave vacuum rubber installed the machine. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Manuel hand controlled hold and release function. Lifting capacity is 300 kgs.max. Manuel hand controlled rotating with safety pin and arm. Manuel hand controlled tilting and lifting with safety pin and arm. Power requirement is 12 V DC single battery operated. Lifter sizes are : 660 x 470 x 1260 (h) mm. Glass sizes are : 700 x 800 to 2000 x 4000 mm. Machine weight :49 kgs. Can be hold spheric bended and flat glasses. Suction cups are made with bellows and joints to adapt the surface.

Technical Specifications

✔Specialized designed for spheric bended glasses.
✔4 pieces R 300 special concave vacuum rubber installed the machine
✔Safety tank and automatic vacuum automat include the holder
✔Vacuum filter located over the machine.
✔Manuel hand controlled hold and release function.
✔Lifting capacity is 300 kgs.max.
✔Manuel hand controlled rotating with safety pin and arm.
✔Manuel hand controlled tilting and lifting with safety pin and arm.
✔Power requirement is 12 V DC single battery operated.
✔Lifter sizes are : 660 x 470 x 1260 (h) mm.
✔Glass sizes are : 700 x 800 to 2000 x 4000 mm.
✔Machine weight :49 kgs.
✔Can be hold spheric bended and flat glasses
✔Suction cups are made with bellows and joints to adapt the surface.
