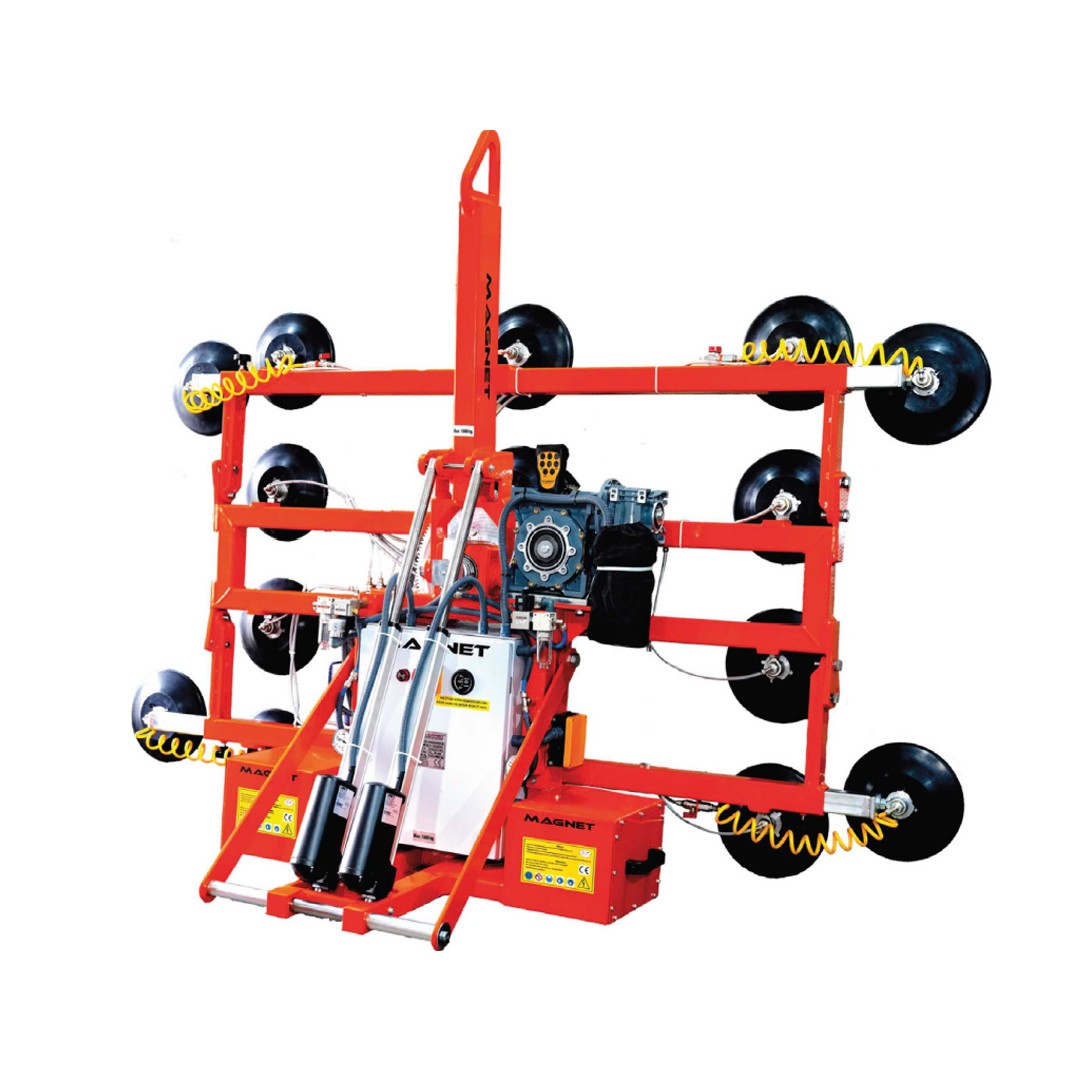

MGV 16 RK AY B T R VAC. LIFTER
MGV 16 RK AY B T R VAC. LIFTER - Görsel 2

MGV 16 RK AY B T R VAC. LIFTER

Category:

MGV 16 RK AY B T R VAC. LIFTER; 16 pieces vacuum rubber installed the machine. Safety tank and automatic vacuum automat include the holder. Vacuum filter located over the machine. Vacuum time between 8 to 48 hours per charge according to glass surface. Lifting capacity is 1000 kgs. Radio controlled rotating. Radio controlled hold and release. Radio controlled tilting and lifting. Power requirement is 24 V DC double battery operated. Lifter sizes are: 1960 x 780* x 1405 (h) mm. Glass sizes are: 850 x 1250 to 3210 x 6000 mm. Telescopic extended arms are located the lifter. Machine weight: 245 kgs. Double vacuum circuit for USA standarts EN 13155 + A2 – 2009 and EN ISO 4414: 2010 safety standarts. Seperated double vacuum pump, double indicator, double vacuum valve.

Technical Specifications

✔16 pieces vacuum rubber installed the machine
✔Safety tank and automatic vacuum automat include the holder
✔Vacuum filter located over the machine.
✔Vacuum time between 8 to 48 hours per charge according to glass surface.
✔Lifting capacity is 1000 kgs.
✔Radio controlled rotating.
✔Radio controlled hold and release
✔Radio controlled tilting and lifting.
✔Power requirement is 24 V DC double battery operated.
✔Lifter sizes are: 1960 x 780* x 1405 (h) mm.
✔Glass sizes are: 850 x 1250 to 3210 x 6000 mm.
✔Telescopic extended arms are located the lifter.
✔Machine weight: 245 kgs.
✔Double vacuum circuit for USA standarts EN 13155 + A2 – 2009 and EN ISO 4414: 2010 safety standarts.
✔Seperated double vacuum pump, double indicator, double vacuum valve
