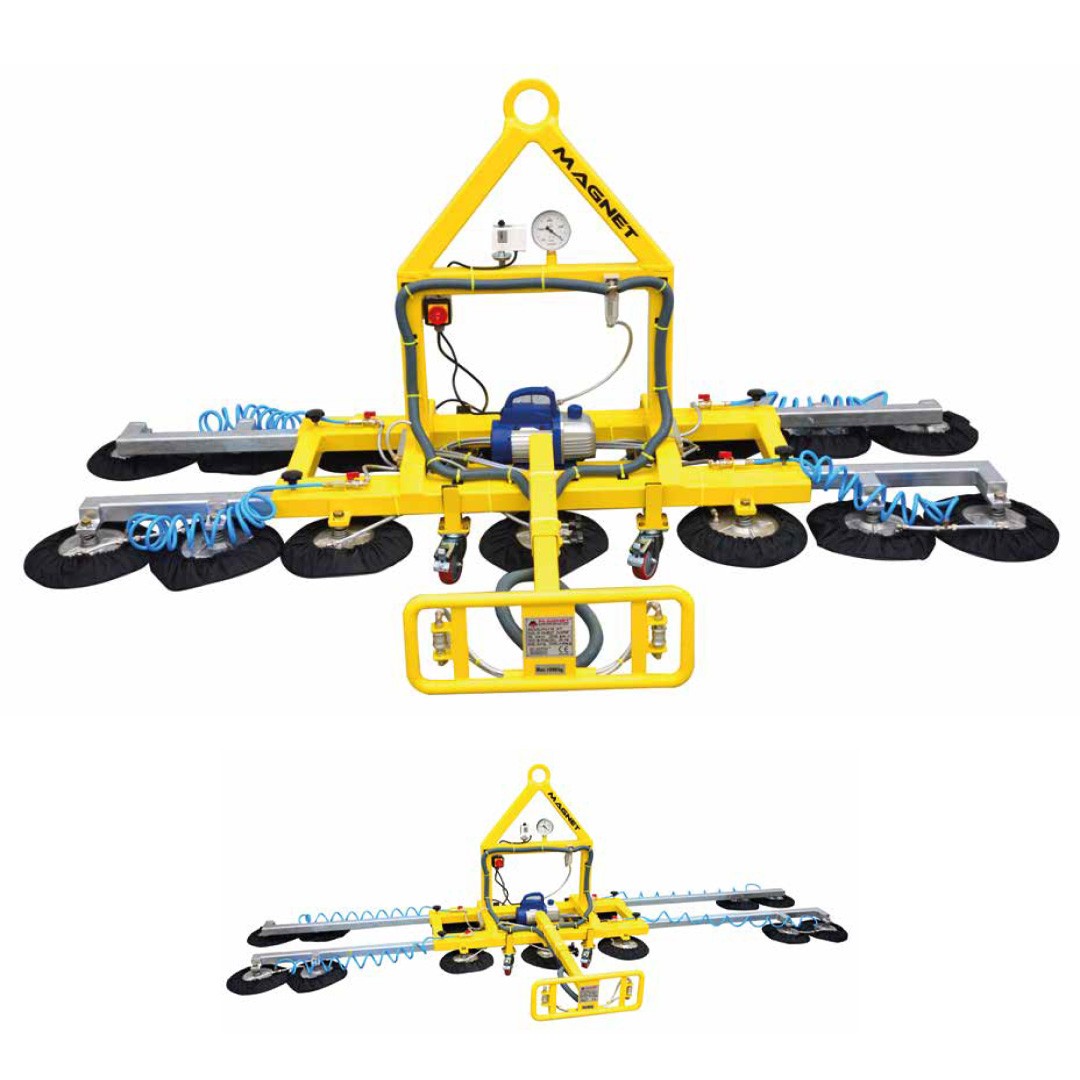

MGV 14 H T VACUUM LIFTER
MGV 14 H T VACUUM LIFTER - Görsel 2

MGV 14 H T VACUUM LIFTER

Category:

MGV 14 H T VACUUM LIFTER; 14 Pieces suction cup located the machine. Manuel controlled hold and release function. Vacuum filter and safety tank are installed the machine. Double vacuum circuit located the machine. Lifting capacity is : 1000 kgs. Max. Lifter sizes are :1260 – 2300 ( Extended ) x 1200 x 1220 ( h ) mm. Lifted material sizes are : 1000 x 1400 – 3210 x 6000 mm. Machine weight : 167 kgs. Telescopic extended arms are located the lifter. You can close outsider suction cups or remove them easily. We have CE certification for EN 13155 safety standarts. Power requirement : 0,37 kW 220 V AC Monophase electricity.

Technical Specifications

✔14 Pieces suction cup located the machine
✔Manuel controlled hold and release function.
✔Vacuum filter and safety tank are installed the machine
✔Double vacuum circuit located the machine.
✔Lifting capacity is : 1000 kgs. Max.
✔Lifter sizes are :1260 – 2300 ( Extended ) x 1200 x 1220 ( h ) mm.
✔Lifted material sizes are : 1000 x 1400 – 3210 x 6000 mm.
✔Machine weight : 167 kgs.
✔Telescopic extended arms are located the lifter
✔You can close outsider suction cups or remove them easily.
✔We have CE certification for EN 13155 safety standarts.
✔Power requirement : 0,37 kW 220 V AC Monophase electricity.
